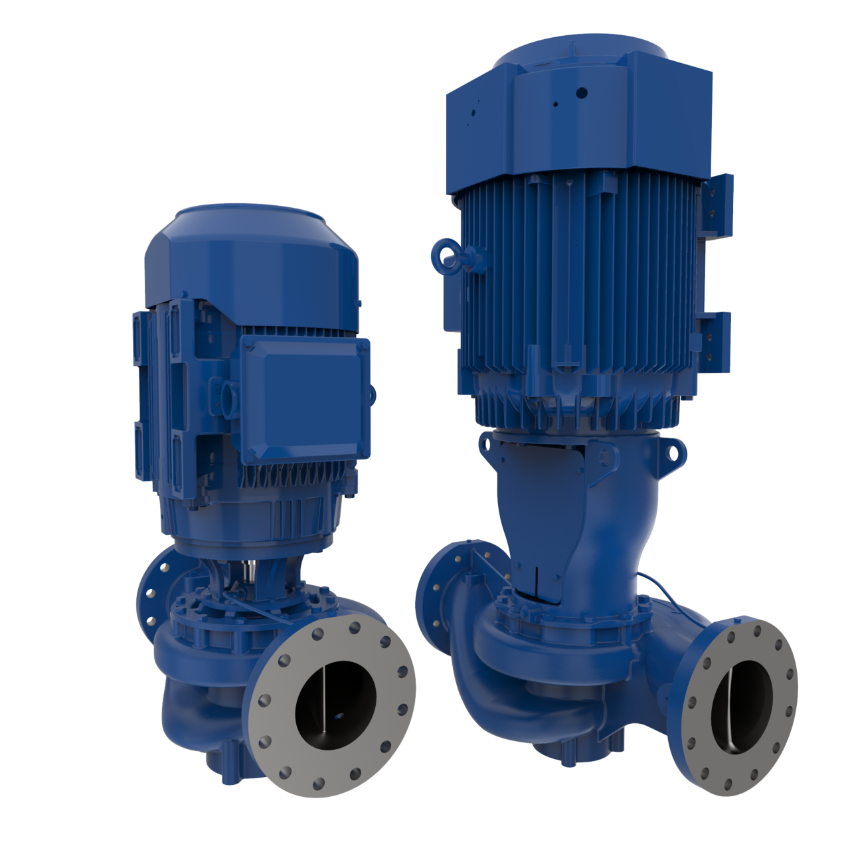

Fairbanks Nijhuis 1590 Series: Space-Saving Vertical Inline Pumps
UL/FM Certified | Made in USA | Authorized Partnership with YAMA Engineering Systems Egypt
Optimize your facility’s footprint without sacrificing power. The Fairbanks Nijhuis 1590 Series is designed for direct pipeline mounting, offering a compact, high-efficiency solution for Egypt’s commercial, industrial, and fire protection sectors.
Compact Efficiency (Core Value Section)
Two Pumps in the Space of One
In modern construction and industrial retrofits, floor space is a premium. The 1590 Series vertical inline design significantly reduces the area required for installation, allowing for flexible mounting in any position directly in the pipeline.
- Key Features:
- In-Line Design: Suction and discharge nozzles are on the same centerline, 180º apart, for simplified piping.
- Patented Jacking Mechanism: Enables easy, one-person seal replacement (Split Coupled version), reducing maintenance labor.
- Back Pull-Out Casing: Allows for the removal of the motor and bracket without disturbing the main piping.
- Ductile Iron Casing: Built for long-term durability and the ability to handle higher working pressures.
- Dynamic Balance: Features enclosed investment-cast stainless steel impellers for smooth, vibration-free operation.
3. Compliance & Certification (Safety Section)
Built for Maximum Reliability
As an authorized partner, YAMA Engineering Systems provides the 1590 Series with the certifications required for high-occupancy and high-hazard projects in Egypt.
- Bullet Points:
- UL Listed & FM Approved: Certified for dependable fire protection service.
- Made in USA: Manufactured to the highest American quality and metallurgical standards.
- NFPA-20 Compliant: Meets all international standards for stationary fire pump systems.
- DOE Efficiency Leader: Exceeds U.S. Department of Energy (DOE) pump efficiency standards.
4. Technical Specifications & Schedule
1590 Series Technical Performance
High-pressure performance in a compact, vertical package.
| Specification | Technical Rating |
| Max Capacity | Up to 4,500 GPM (1,020 m³/hr) |
| Max Pressure | Up to 370 Feet of Head (112 m) |
| Max Temperature | Up to 250°F (120°C) |
| Casing Material | Ductile Iron (Standard) |
| Impeller Material | Investment Stainless Steel |
| Configurations | Close Coupled (1590-CC) or Split Coupled (1590-SC) |
The Perfect Fit for Egyptian Infrastructure
- The 1590 Series is the ideal choice for:
- HVAC Systems: Chilled and hot water circulation in malls, hospitals, and high-rise towers.
- Fire Protection: Compact fire pump solutions where mechanical room space is limited.
- Industrial Water Supply: Booster service and liquid transfer in manufacturing plants.
- Municipal Booster: Pressure maintenance in urban water distribution grids.
